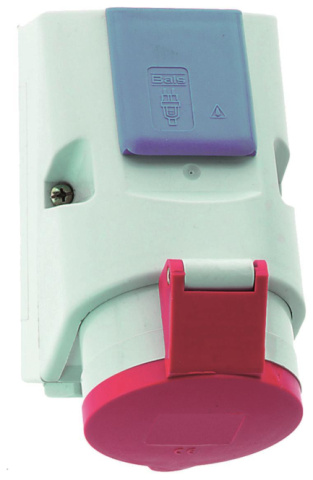

BALS CEE TK Combination Socket 16A 5-pole 1010 6h IP44 400V NEW

Item condition: New and in original packaging

Manufacturers: Bals Elektrotechnik GmbH & Co.
EAN: 4024941010108
Heiz24 article number: ZD170996
TARIC: 85366990
Country of origin: DE
Category: Schukostecker/Kupplungen

€ 47,59

incl. 19% VAT , plus

Choose tax zone / country of delivery

Available for immediate order
Estimated delivery time (may vary): 4 - 6 Workdays (DE - foreign countries differ)

12 in the supplier warehouse

Estimated delivery time (may vary): 4 - 6 workdays (DE - foreign countries differ)

more than 12 we can order for you

TC combined socket outlets TC combined socket outlet, IP44
- with terminal, with wiring (ready for connection)
- with integrated socket outlet with earthing contact 16A, 230 V, 2-pin + E Current:16 A Number of poles:5-pin, 6h Voltage:400 V Combined wall socket outlet 16A 5p (3P+N+PE) 400V (200/346 to 240/415V) 6h IP44 50 and 60Hz, Identification colour:red RAL 3000, Housing size:126x83 mm (HxW), Contact carrier/contacts:Contact carrier made of polyamide, the contacts are made of brass, Maximum conductor cross-section:4.0 qmm, Housing material:Polyamide, Cable entry:1xM25 top, 2xM25 bottom, Other technical features:The cable entry is open once at the top and closed twice at the bottom. With integrated earthing contact socket 16A 250V AC German system. There are 4 fixing holes in the base of the housing for breaking out. With terminals 3x6qmm and
-wired ready for connection.
-CEE socket outlet
- 16 A 1x16A5p400V
-CEE socket outlet
- 32 A without
-CEE socket outlet
- 63 A without
-CEE socket outlet
- 125A without
-number of protective contacts

Item information	Value
Shipping weight:	0,48 kg
Item weight:	0,48 kg
Dimensions ( Length × Width × Height ):	33,00 × 22,00 × 26,00 cm
