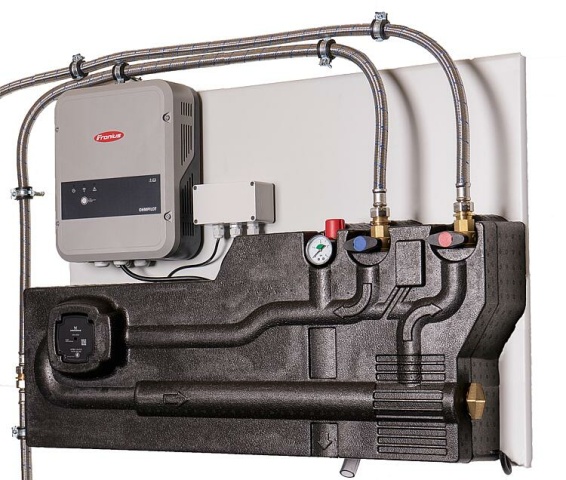

Askoma hydraulic unit ASKOWALL OP, 1–9 kW, DN40 (11/2") NEW

"Fig. similar. , errors in texts and images excepted."

Askoma hydraulic unit ASKOWALL OP, 1–9 kW, DN40 (11/2") NEW

Item condition: New and in original packaging

Manufacturers: Askoma
Heiz24 article number: WS9703400
TARIC: 84122900
Country of origin: DE
Category: NEW

€ 1.694,99

incl. 19% VAT , plus

Choose tax zone / country of delivery

Available for immediate order
Estimated delivery time (may vary): 4 - 7 Workdays (DE - foreign countries differ)

2 in the supplier warehouse

Estimated delivery time (may vary): 4 - 7 workdays (DE - foreign countries differ)

more than 2 we can order for you

• For external connection to heating buffer storage tanks, completely pre-assembled
• For storing PV energy as heat in heating water
• For existing buffer tanks that do not have a heating element connection
• Heating of the buffer storage tank using the instantaneous water heater principle
• Full buffer storage volume usable
• For screw-in heating elements DN 40 (1 1/2") up to an installation length of 750 mm
• Temperature setting on the thermostatic mixing valve 50°C - 75°C
• Integrated circulation pump and dirt trap
• Connection for MAG
• Supplied without screw-in heating element
Technical data:
• Circulation pump: UPM3 Auto 15-70
• Connection: DN 20 (3/4") female thread
• Connection for heating rod: DN 40 (1 1/2")
• Max. operating pressure: 3 bar
• Operating temperature range: 10 to 90°C
• Dimensions (H x W x D): 690 x 690 x 208 mm
• Electrical connection box is pre-wired for the Fronius Ohmpilot and circulation pump provided by the customer, includes the run-on relay
• For ASKOHEAT-OP screw-in heating elements
• Fronius Ohmpilot not included in scope of delivery
