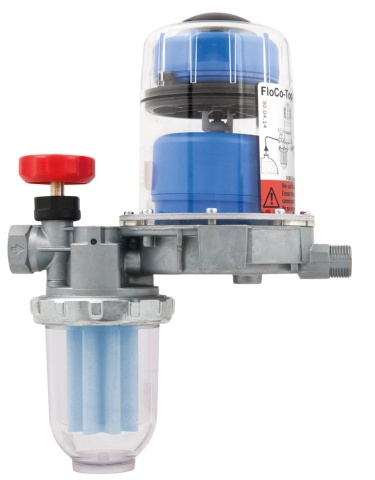

Afriso heating oil deaerator, automatic, with integrated filter, FloCo-TOP-K, 69960 69960 NEW

Item condition: New and in original packaging

Manufacturers: Afriso
EAN: 4016203699602
Heiz24 article number: WE1665608
TARIC: 84213920
Country of origin: DE
Category: Deaerators / separators / heating filters

€ 112,49

incl. 19% VAT , plus

Choose tax zone / country of delivery

Available for immediate order
Estimated delivery time (may vary): 4 - 6 Workdays (DE - foreign countries differ)

AFRISO heating oil deaerator FloCo-Top-1K SiFor single-pipe systems with return feed in oil firing systems for continuous deaerationSuitable for the media heating oil EL (DIN 51603-1), diesel fuel (EN 590), liquid fuels according to DIN SPEC 51603-6 and DIN/TS 51603-8 as well as bio heating oil and biodiesel with max. 30 % fame (en 14214). 30 % FAME (EN 14214). This product is therefore ideal for all ecologically upgraded heating oil consumer systems that use the new paraffinic fuels HVO or GTL as a blend or 100%. Also for use in flooded and high-risk areas.Water pressure-tight up to 10 m water column.Automatic heating oil deaerator in safety design with integrated filter and shut-off valve.Additionally equipped with transparent bonnet and safety float, which prevents oil foam from escaping through the vent hole.Faults in the deaeration system can also be detected.Water pressure-tight up to 10 m water column.PROOFED BARRIER (odour-tight when the separating air is returned to the tank).Technical dataFilter: Sikusieve short, 50 myConnectionsBurner side: G 3/8 AG with 60 degree cone for burner hosesTank side: G 3/8 IGNozzle capacity: Max. 100 l/hReturn flow: Max. 120 l/hSeparation capacityAir / gas: approx. 4 l/hInstallation position: Float housingvertical upwardsTemperature operating rangeMedium/environment: Max. 60 COperating overpressure: Max. 0.7 bar(corresponds to static oil column of approx. 8 m)Test pressure: 6 barMaterialHousing: Die-cast aluminiumVentilation bonnet: PlasticTests: TUV(S 556 2021 S1)Certificate of usability: Certificate of conformity (ÜHP) according to EN 12514Make: AFRISOType: FloCo-Top-1K SiArticle no.: 69960
See operating or installation instructions.

Item information	Value
Shipping weight:	0,90 kg
Item weight:	0,90 kg
