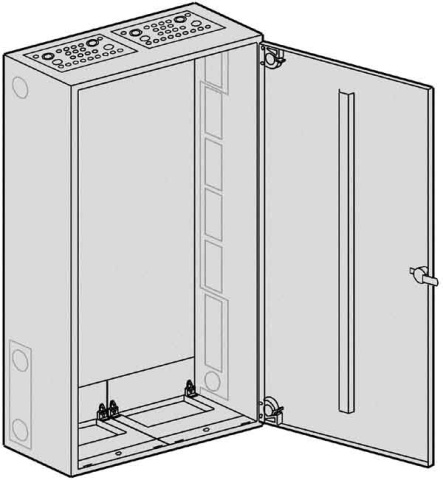

ABN Wall-mounted enclosure, insulated IP43 S27 NEW

Item condition: New and in original packaging

Manufacturers: ABN#
EAN: 4015153000117
Heiz24 article number: SP0618378
TARIC: 85381000
Country of origin: DE
Category: Zählerplatz- und Verteilersysteme

€ 290,90

incl. 19% VAT , Free shipping to DE.

Choose tax zone / country of delivery

Available for immediate order
Estimated delivery time (may vary): 3 - 5 Workdays (DE - foreign countries differ)

Pcs.

Wall-mounted enclosure, 210 mm deep, insulated Y. External dimensions W x H x D (mm) 550 x 1100 x 210. width 2. height 7. PLE 168. wall-mounted enclosure, 210 mm deep. Protection class II (S series), protection class I (SV series). Protection class: IP43. For units up to 400? A. Flush-mounting, surface-mounting and partially recessed with . Internal mounting or external mounting. Widths: 300, 550, 800, 1050, 1300? mm. Heights: 500, 650, 800, 950, 1100, 1250, 1400? mm. Depth: 210? mm. Colour: RAL 9016 (traffic white). Space units: 36 to 540. Material: 1 mm sheet steel (housing and door), powder-coated. Pre-stamped on both sides for busbar feed-through 300 x 80 ?mm . and M50 screw connection. Cable entries 2K membrane flange at the bottom and top, 35 x per panel. Can be combined horizontally and vertically. Door inside, can be hinged on right or left, without tools . can be dismantled and adjusted with opening angle 110°, lock . can be lead-sealed as standard, 3-point rod lock from 1250 ?mm . Height or 2-door version. Prepared for installation of standardised module kits . on NT support profiles or for continuous mounting plates. DIN EN 61439-1 (VDE0660 Part 600-1).

Item information	Value
Surface protection:	pulverbeschichtet
Colour:	weiß
Protection class (IP):	IP43
Height:	1100 mm
Mounting type:	Aufputz
Enclosure material:	Stahlblech/Kunststoff
Protection class:	II
RAL number:	9016
Suitable for outdoor use:	nein
Width in units of division:	24
Impact resistance:	IK09
With lock:	nein
Number of rows:	2
Wide:	550 mm
Depth:	210 mm
Function maintenance:	ohne
Lid version:	ohne
Interior depth:	190 mm
Attachment option:	ja
Material thickness housing:	1,5 mm
Protection class (NEMA):	sonstige
Installation depth:	190 mm
Number of cable entries:	160
With mounting plate:	nein
Cover type:	Tür
Suitable for lightning protection:	ja
Transparent lid/door:	nein
Number of modules:	1
Number of openings for flange plates:	4
Door type:	Einzel
Cover with overpressure relief:	nein
Rated current (In):	400 A
Material thickness door/lid:	2 mm
Shipping weight:	18,00 kg
Item weight:	16,55 kg
Dimensions ( Length × Width × Height ):	21,00 × 55,00 × 110,00 cm
