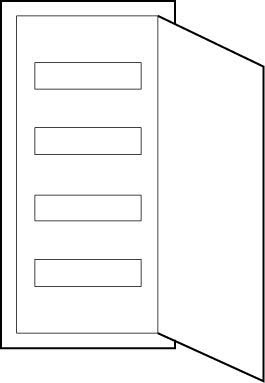

ABN Small distribution box hollow w. with door A48HW NEW

Item condition: New and in original packaging

Manufacturers: ABN#
EAN: 4015153205970
Heiz24 article number: SP5603220
TARIC: 85381000
Country of origin: DE
Category: A

€ 90,88

incl. 19% VAT , plus

Choose tax zone / country of delivery

Available for immediate order
Estimated delivery time (may vary): 3 - 5 Workdays (DE - foreign countries differ)

Pcs.

Cavity wall distribution box with plug-in terminals. PE 6 x 2.5 - 16 + 21 x 1.5 - 4 qmm. N+N each 3 x 2.5 - 25 + 14 x 1.5 - 4 qmm. additional N-FI terminal 3 x 16, 2 x 10 qmm. Cover frame W x H x D (mm) 344 x 749 x 11. Cut-out dimensions W x H x D (mm) 310 x 695 x 88. TE each 18 mm 48/56. Rows 4. Cavity wall small distribution board. Insulated II. Protection class: IP 30. For units up to 63 A. Colour: RAL 9016, traffic white. Simple door hinge change without dismantling the cover frame. Flat door lock with snap-action technology. . Easy to replace with a lock. Suitable for built-in units up to 70 mm deep. Built to DIN VDE 0603-1, DIN 43871. Wall box made of plastic, with device support rail made of sheet steel, . Depth 88/90 mm. N/PE plug-in terminals, finger-safe in easy-to-install snap-in design. N-FI extension terminal, included as standard for 2-, 3- and 4-row distribution boards for lateral snap-in mounting. Device cover with device cut-outs, H = 46 mm, for 12 HP . (symmetrically extendable to 14 HP). Sealable, 2-point fixing. Cover frame with solid door of sheet steel. Circuit labelling and sheet with pictograms. Plaster protection plate.

Item information	Value
Colour:	weiß
Protection class (IP):	IP30
Height:	749 mm
Mounting type:	Hohlwand
Enclosure material:	Kunststoff
RAL number:	9010 9016
Width in units of division:	12
With lock:	nein
Number of rows:	4
Wide:	344 mm
Depth:	99 mm
Installation height:	710 mm
Lid version:	mit Ausschnitt
Interior depth:	76 mm
Attachment option:	nein
Installation width:	330 mm
Installation depth:	90 mm
With mounting plate:	nein
Cover type:	ohne
Transparent lid/door:	nein
Type of closure:	sonstige
DIN rail:	ja
Earth terminal block:	ja
Neutral conductor terminal block:	ja
Signal passing door:	nein
EMC version:	nein
Shipping weight:	5,19 kg
Item weight:	4,69 kg
Dimensions ( Length × Width × Height ):	10,50 × 35,00 × 76,00 cm
