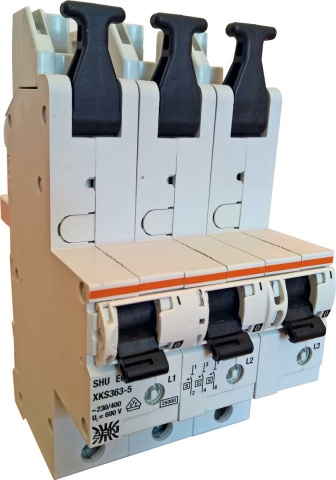

ABN SHU switch 3-pole, 35A XKS335-5 NEW

Item condition: New and in original packaging

€ 132,26

incl. 19% VAT , plus

Choose tax zone / country of delivery

Available for immediate order
Estimated delivery time (may vary): 3 - 5 Workdays (DE - foreign countries differ)

Estimated delivery time (may vary): 3 - 5 workdays (DE - foreign countries differ)

Pcs.

SHU switch/3-pole/35A, collective S-mounting Characteristic E / ABN

Item information	Value
Protection class (IP):	IP20
Voltage type:	AC
Width in units of division:	4,5
Frequency:	50..60 Hz
Explosion-proof:	nein
Flush mounting:	nein
Connectable conductor cross-section solid:	50 mm²
Connectable conductor cross section stranded:	50 mm²
Rated voltage:	400 V
Rated insulation voltage Ui:	690 V
Installation depth:	73 mm
Rated current:	35 A
Release characteristics:	E
Pollution level:	3
Overvoltage category:	4
Number of fused poles:	3
Rated breaking capacity Icn according to EN 60898 at 230 V:	25 kA
Rated breaking capacity Icn according to EN 60898 at 400 V:	25 kA
Rated impulse withstand voltage Uimp:	6 kV
Energy limitation class:	3
Switching neutral conductor:	nein
Number of poles (total):	3
Ambient temperature during operation:	55 °C
Additional equipment possible:	nein
Shipping weight:	1,30 kg
Item weight:	1,17 kg
Dimensions ( Length × Width × Height ):	18,60 × 9,50 × 14,50 cm
