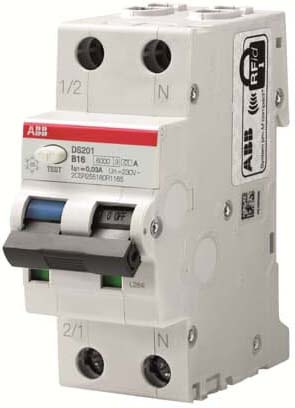

ABB Stotz S&J FI/LS switch 6kA, 1p+N DS201A-C16/0,03 NEW

Item condition: New and in original packaging

Manufacturers: ABB
EAN: 8012542739319
Heiz24 article number: SP5715254
TARIC: 85363030
Country of origin: IT
Category: Sicherungsautomaten, SHL,FI und sonst. Einbaugeräte

€ 61,90

incl. 19% VAT , plus

Choose tax zone / country of delivery

Available for immediate order
Estimated delivery time (may vary): 3 - 5 Workdays (DE - foreign countries differ)

22 Pcs. in the supplier warehouse

Estimated delivery time (may vary): 3 - 5 workdays (DE - foreign countries differ)

more than 22 Pcs. we can order for you

Pcs.

Residual current circuit breakers (RCBOs) provide personal and property protection as well as protection against electrically ignited fires in accordance with DIN VDE 0100-410 and DIN VDE 0100-530. They ensure protection of single-phase circuits against overload and short-circuit currents, protection for sinusoidal alternating currents and pulsating currents with a smooth DC fault current component of up to 6 mA to earth. As well as fault protection (protection in case of indirect contact), additional protection (with I?n = 30 mA) and fire protection (with I?n = 300 mA). They comply with the product standards IEC/EN 61009-1 (VDE 0664-20), IEC/EN 61009-2-1 (VDE 0664-21). \nApplication areas are household, commercial and industrial. The extensive range of accessories offers you everything you need for your installation tasks. Numerous approvals make the DS201 fit for worldwide use. \Rated breaking capacity according to IEC/EN 61009 Icn = 6 kA. \nRCBO DS201 A type A is 1-pole protected (LS), 2-pole switching.

Item information	Value
Protection class (IP):	IP20 IP2X
Voltage type:	AC
Width in units of division:	2
Frequency:	50/60 Hz
Flush mounting:	nein
Rated voltage:	230 V 240 V
Rated insulation voltage Ui:	500 V
Installation depth:	69 mm
Rated current:	16 A
Release characteristics:	C
Pollution level:	2
Overvoltage category:	3
Number of fused poles:	1
Energy limitation class:	3
Switching neutral conductor:	ja
Number of poles (total):	2
Ambient temperature during operation:	-25..55 °C
Rated residual current:	0,03 A 0,02999999 A
Residual current type:	A
With locking device:	nein
Surge current resistance:	0 kA
Rated breaking capacity according to EN 61009:	6 kA
Rated breaking capacity according to IEC 60947-2:	10 kA
Fault release protection:	nein
Shipping weight:	0,23 kg
Item weight:	0,20 kg
Dimensions ( Length × Width × Height ):	8,00 × 4,00 × 10,60 cm
